OVER INJECTION MOLD

SHOCK ABSORPTION & WATER PROTECTION




IP68 waterproof products
IP68 Waterproofing

IP68 waterproof
Overmolding Products

Over Molding is the process where one material is precision molded over another material, usually rubber (TPE) over plastic, for visual or ergonomic appeal. Very often when the design requires ” soft touch” or waterproofing (IP68), over molding is the manufacturing process that we will use. For over molding success, knowledge of material compatibility is crucial. Our extensive expertise in this field helps assure your end part will have the strong end-application bond and performance that your product success demands.

Insert molding can also be combined with over molding using parts made of aluminum, brass, stainless steel, copper, plastic and more.

International Protection Rating IP-68

IP-68 is the most rigorous Ingress Protection classification for water and dust protection. IP68 means that a product has been tested in a certified lab where it has proven to provide full protection against long-term submersion under water.

Material:

Over molding of thermoplastic elastomers (TPEs) are specially formulated to bond to a variety of thermoplastics including:

  • PC/ABS
  • PC/PETG
  • Acetal (POM)
  • Copolyester
  • Polystyrene (PS)
  • Polycarbonate (PC)
  • Polyphenylene oxide (PPO)
  • High Impact Polystyrene (HIPS)
  • Acrylonitrile Butadiene Styrene (ABS)
  • Standard and Modified Nylon 6, Nylon 6/6, Nylon 6,6,6

Advantages:

  • Easy to grip, soft touch feeling
  • Drop protection / Shock absorption
  • Water resistant / Waterproof IP68
  • Flexible, good for hinges
  • Reduced Part Size and Weight
  • Expanded Part Design Flexibility
  • Reduced Assembly Time and Cost
  • Increased Completed-Part Accuracy and Performance Reliability
Applications:
  • Handheld Portable Housings
  • Mobile Device Cases
  • Waterproof Cases
  • Medical & Industrial Parts
  • Sports & Leisure equipment
  • Hinge Covers
  • Hand Tools

EXAMPLES

OVER MOLDING

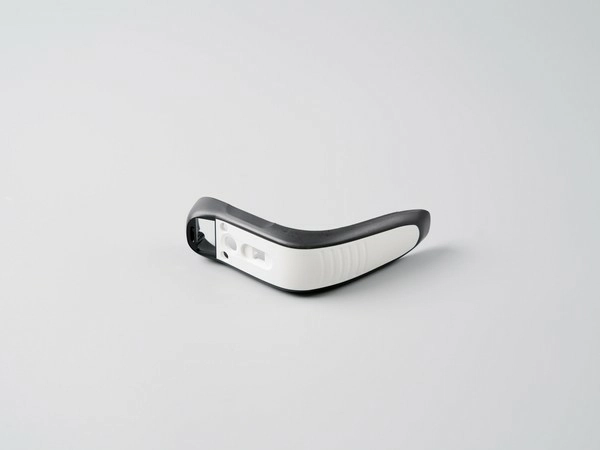

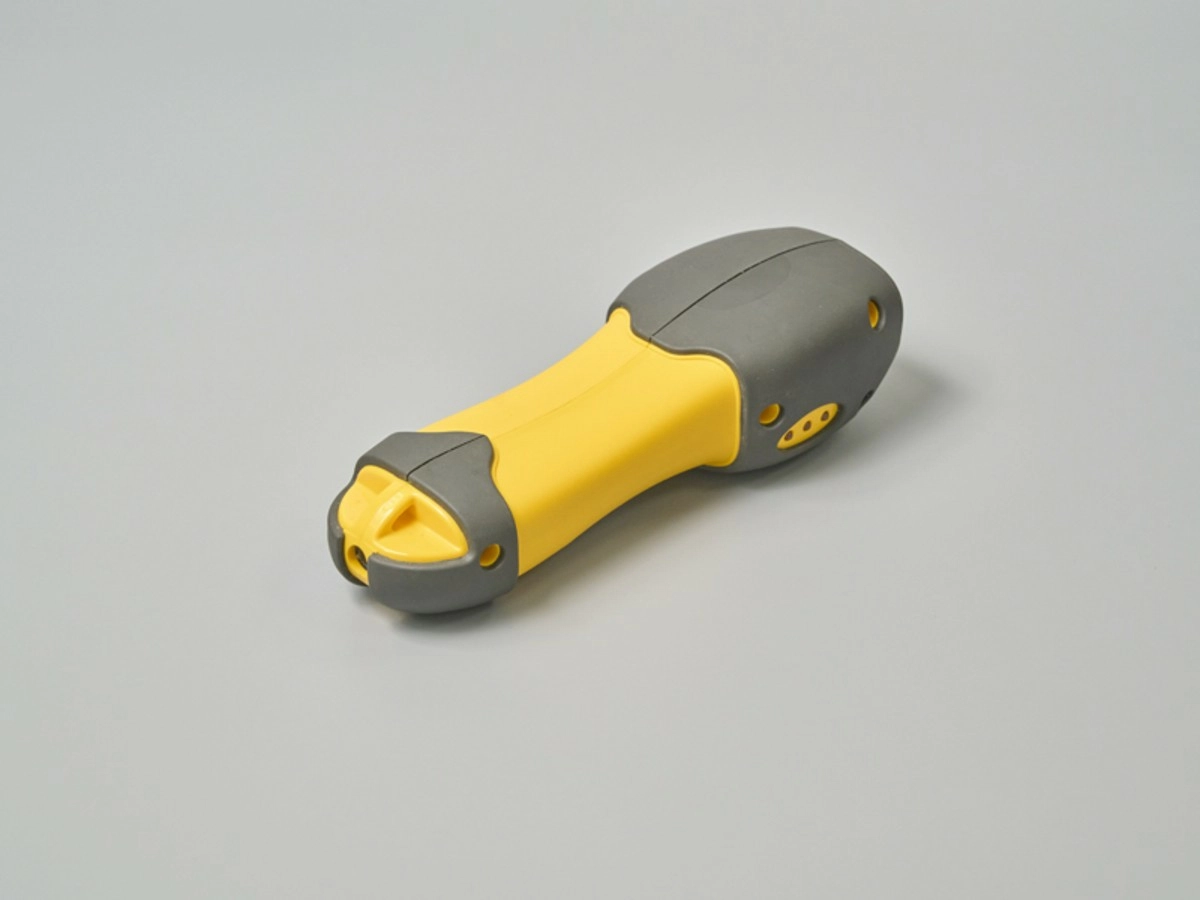

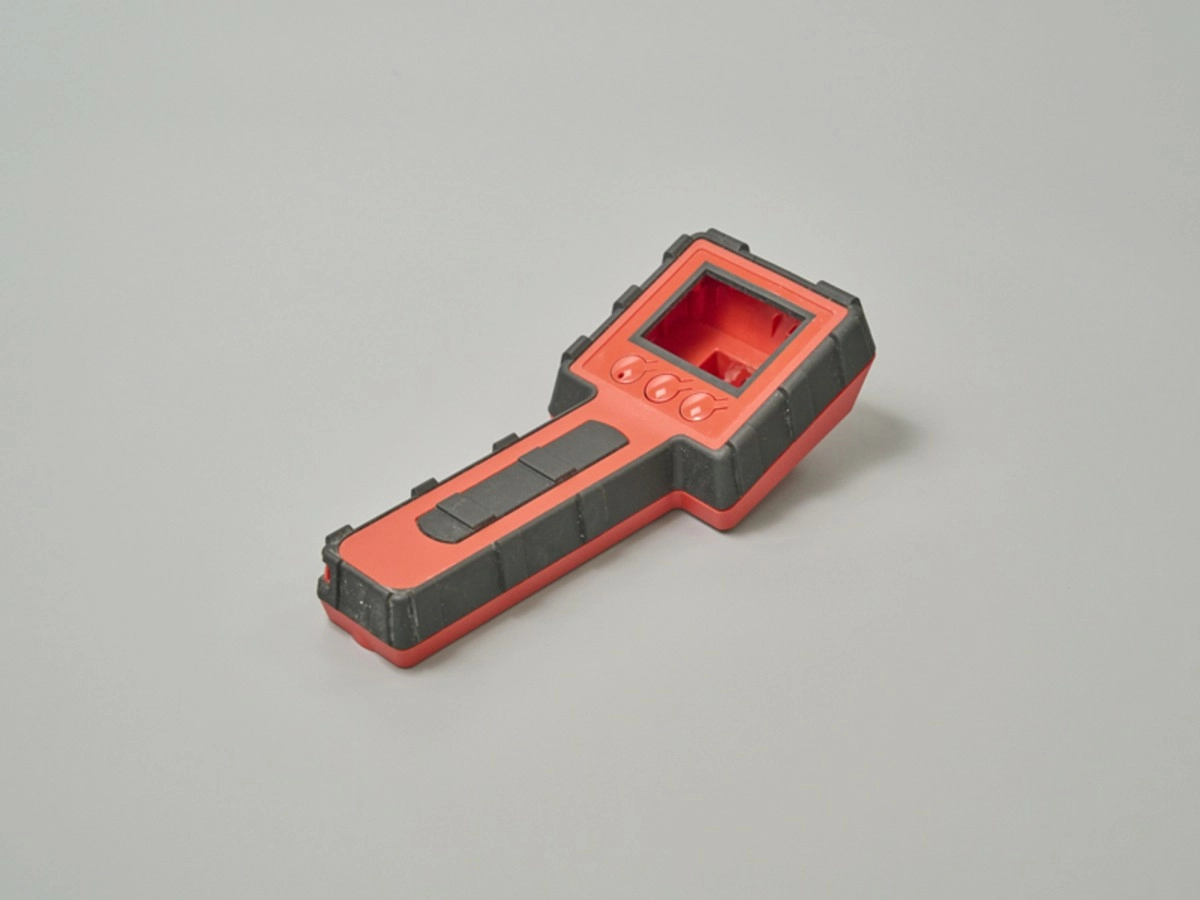

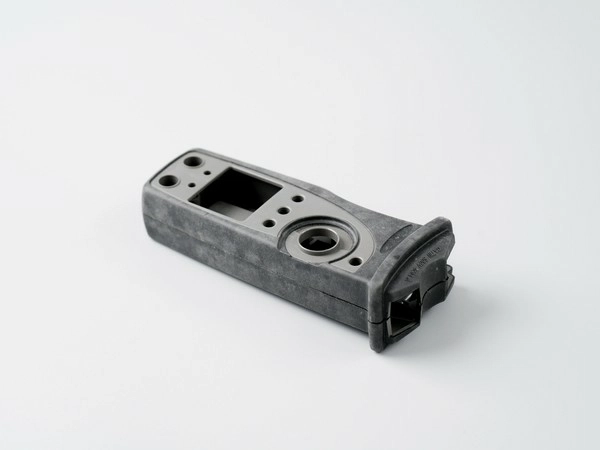

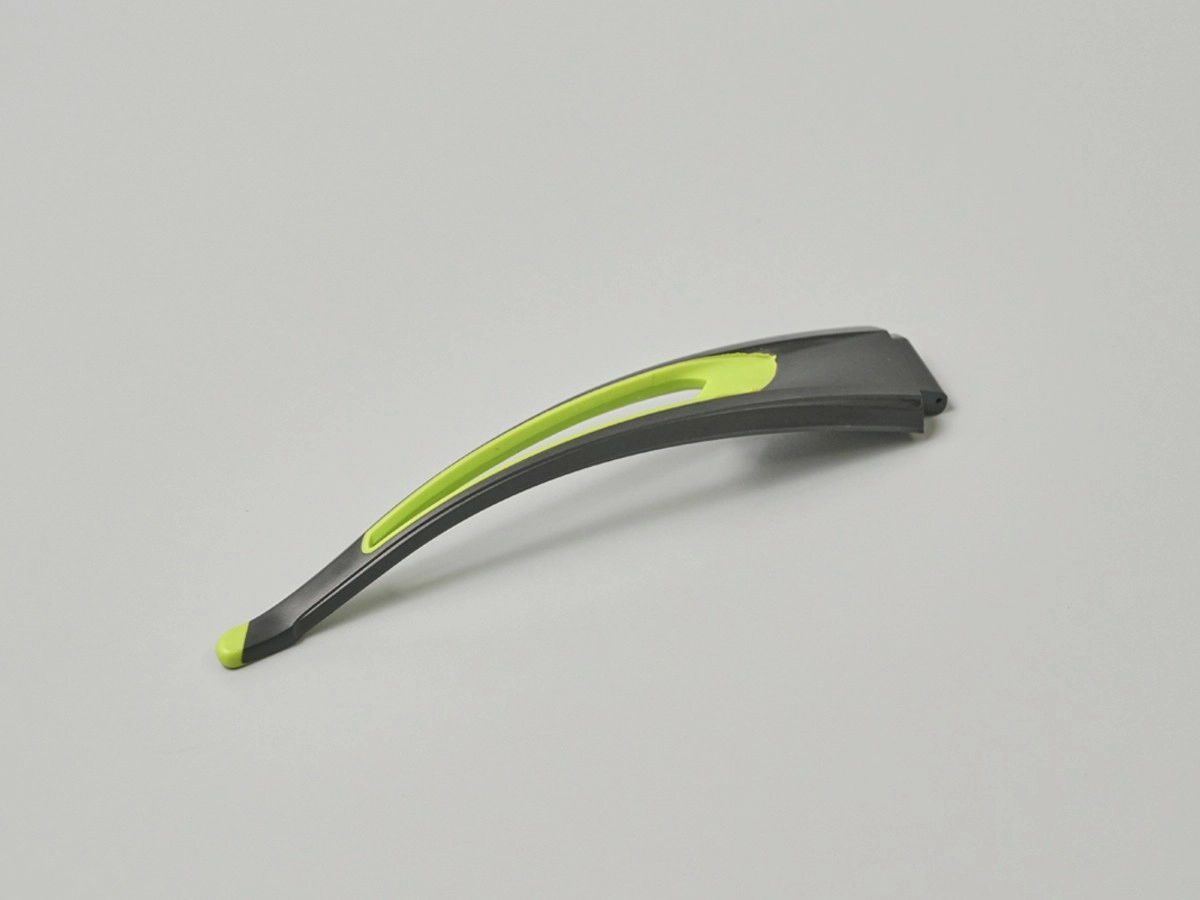

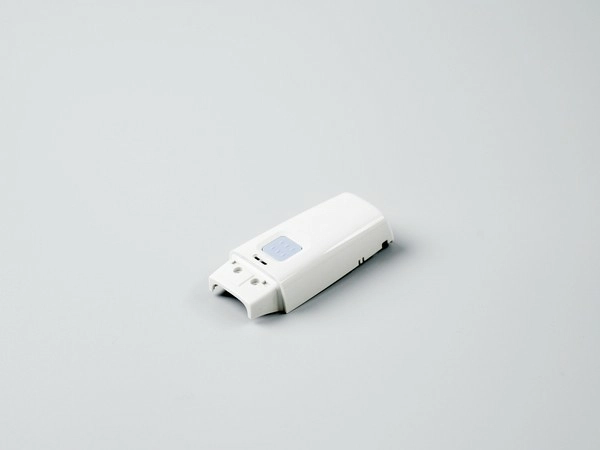

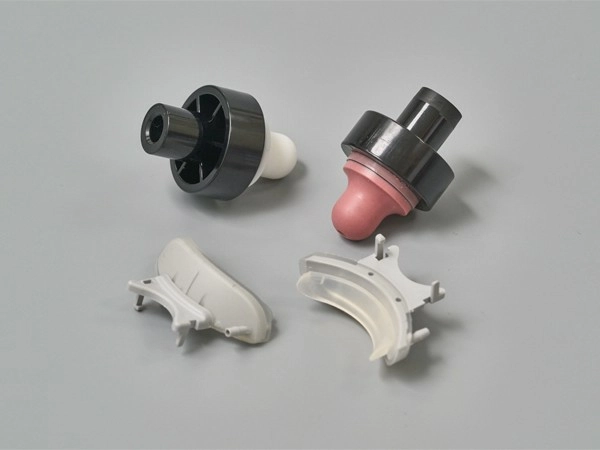

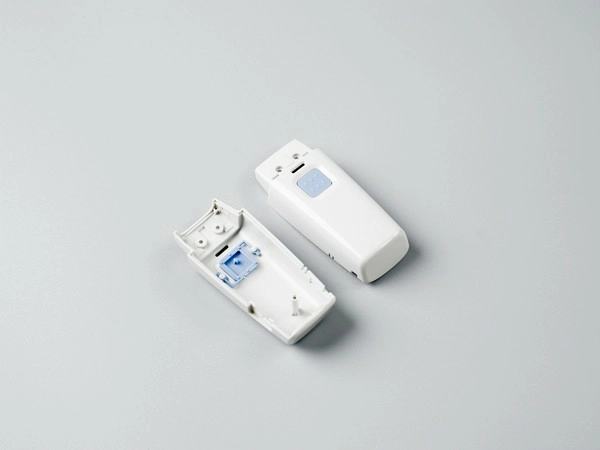

Overmolding Sample - Tools

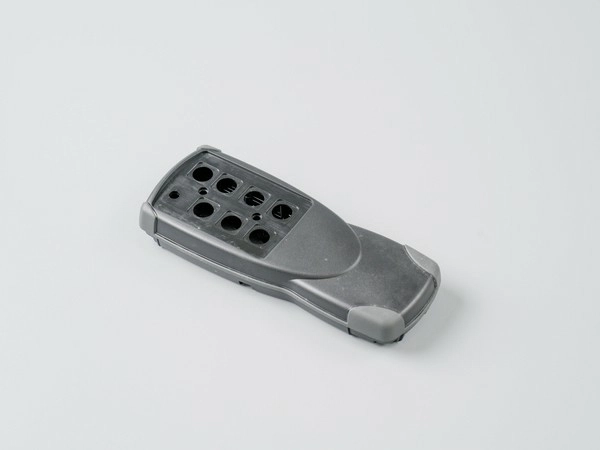

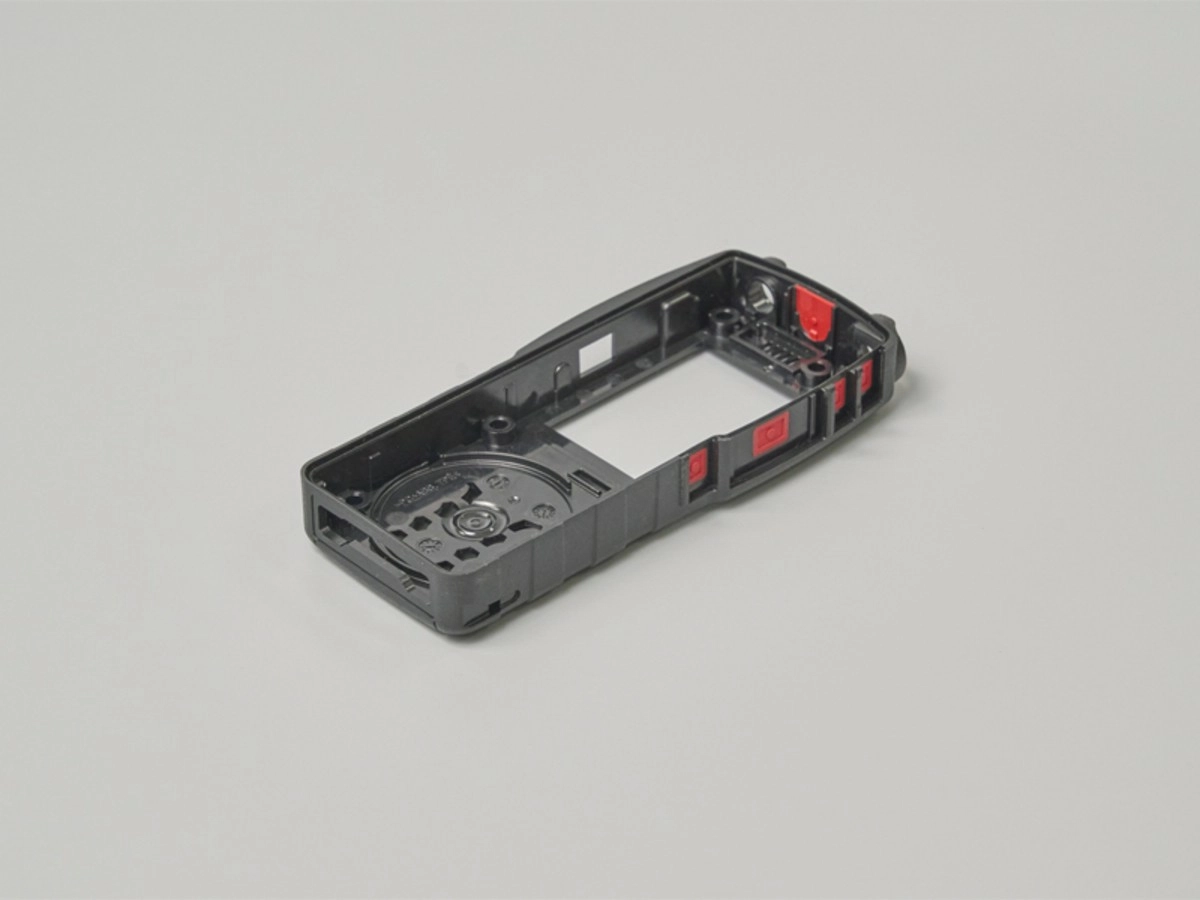

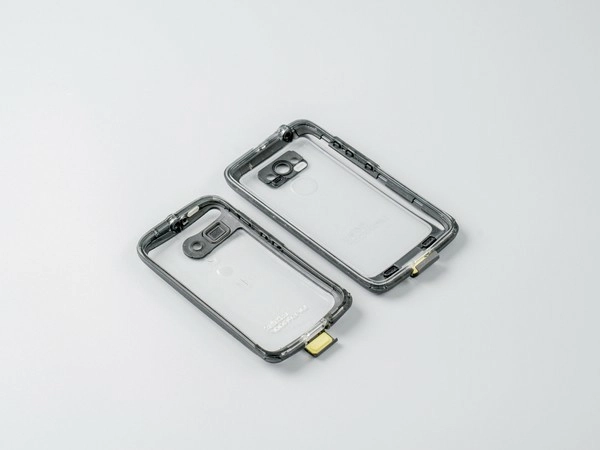

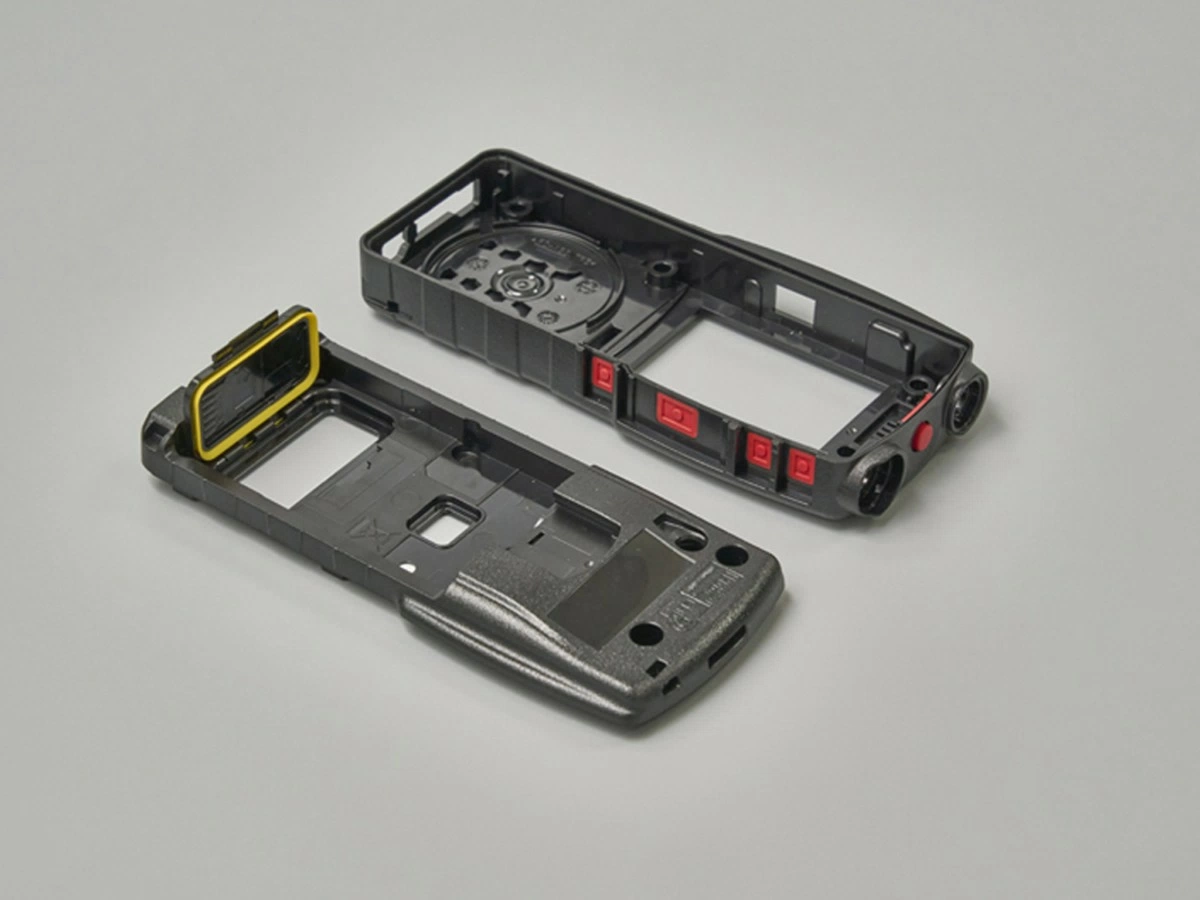

Yomura Over Molding - Cellphone Bodies

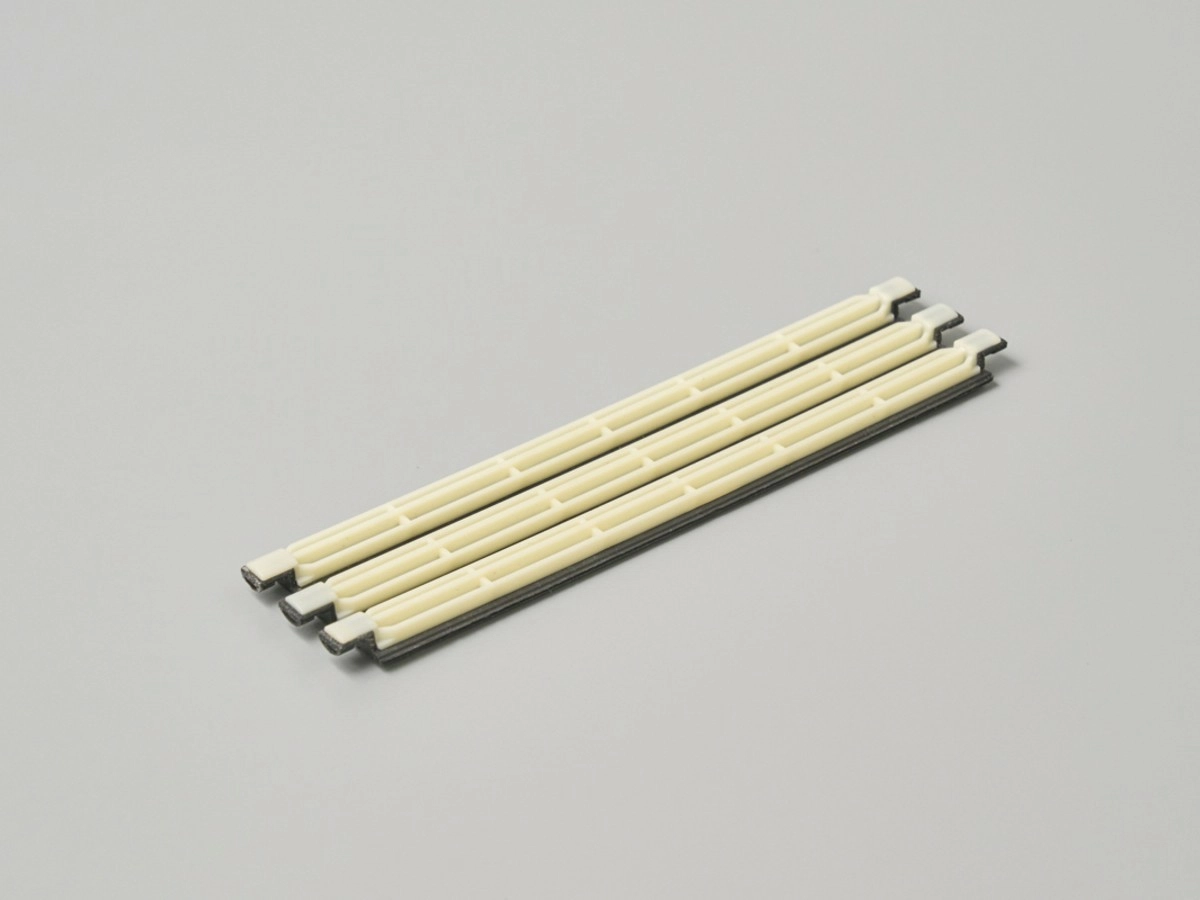

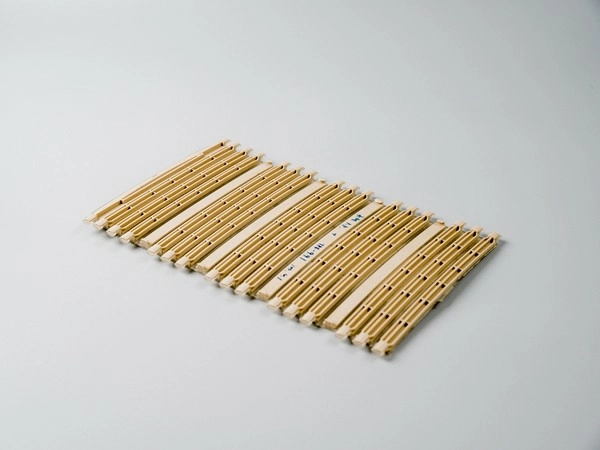

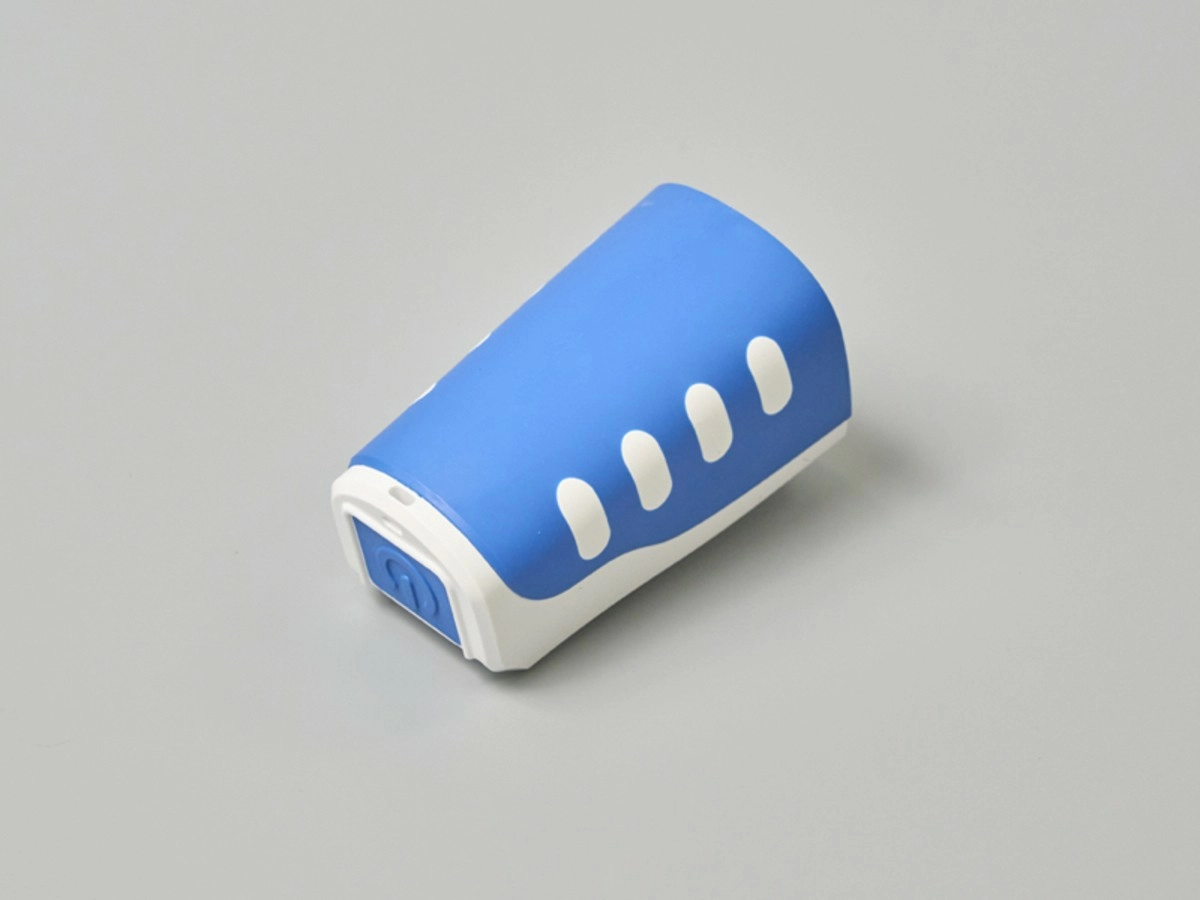

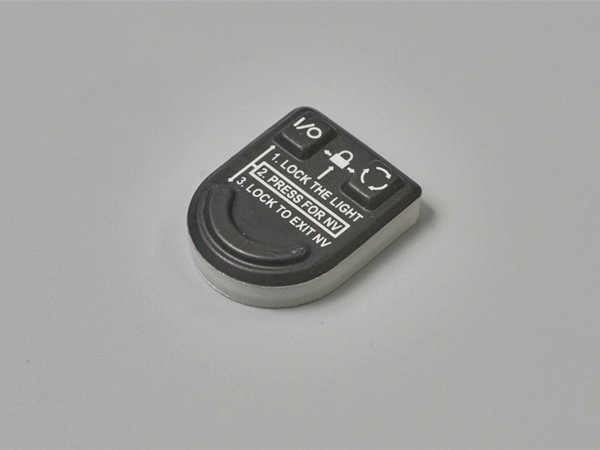

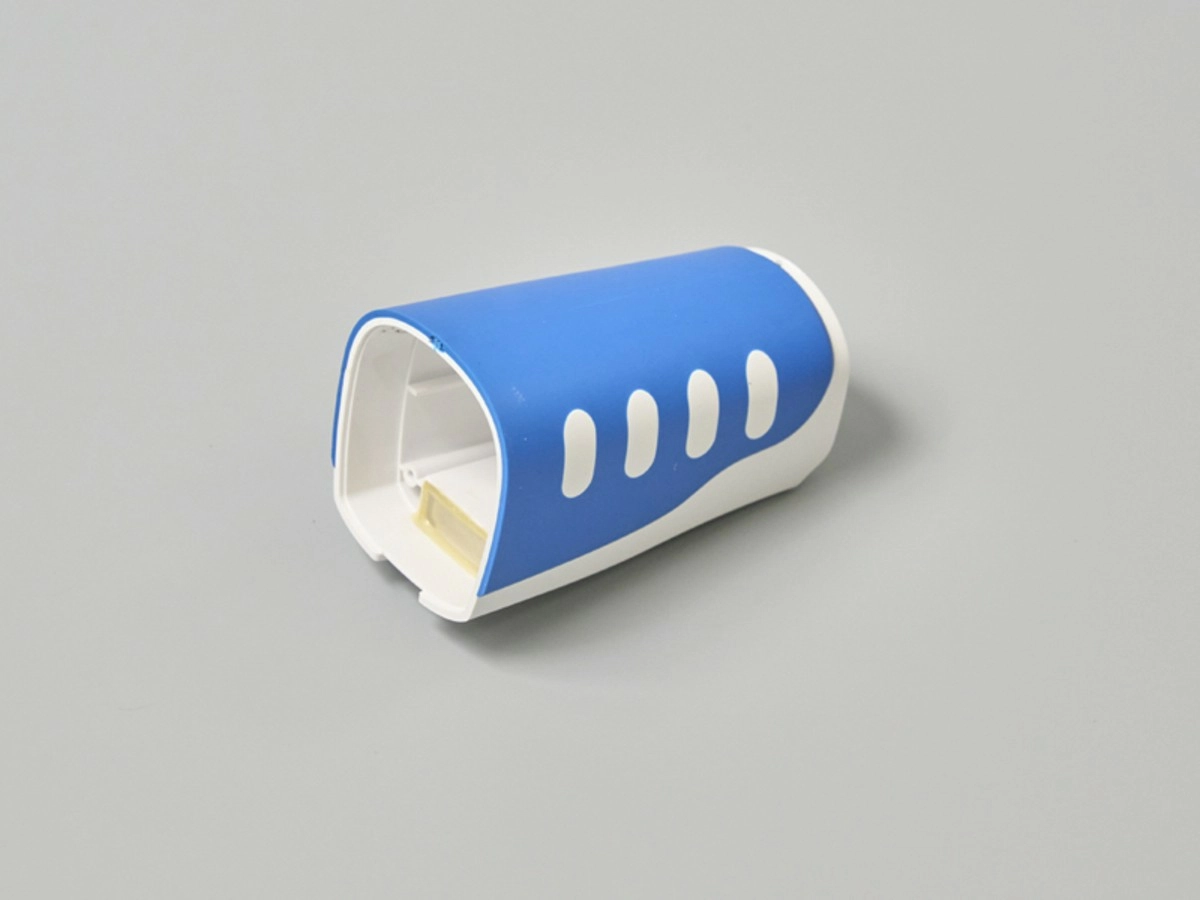

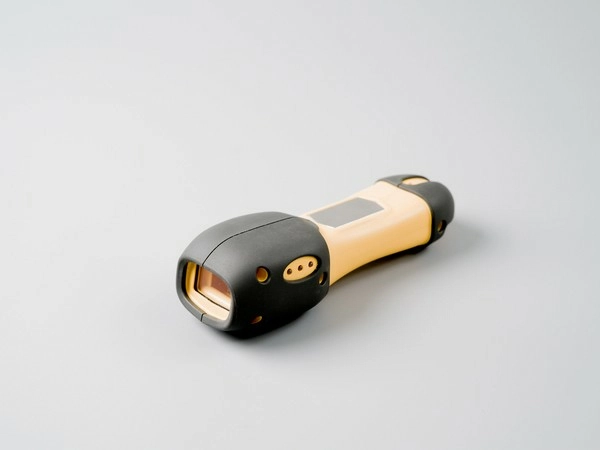

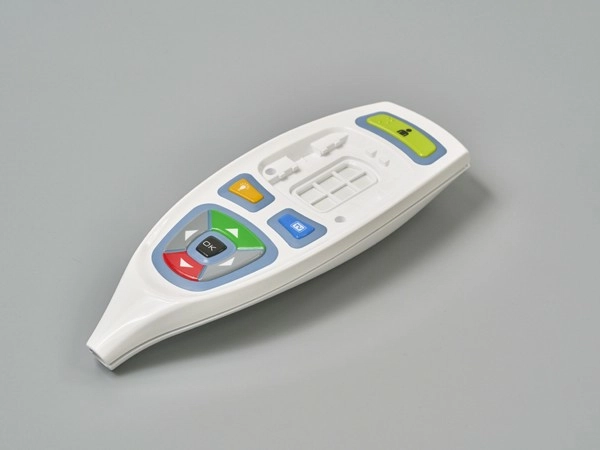

Yomura Over Molding Series

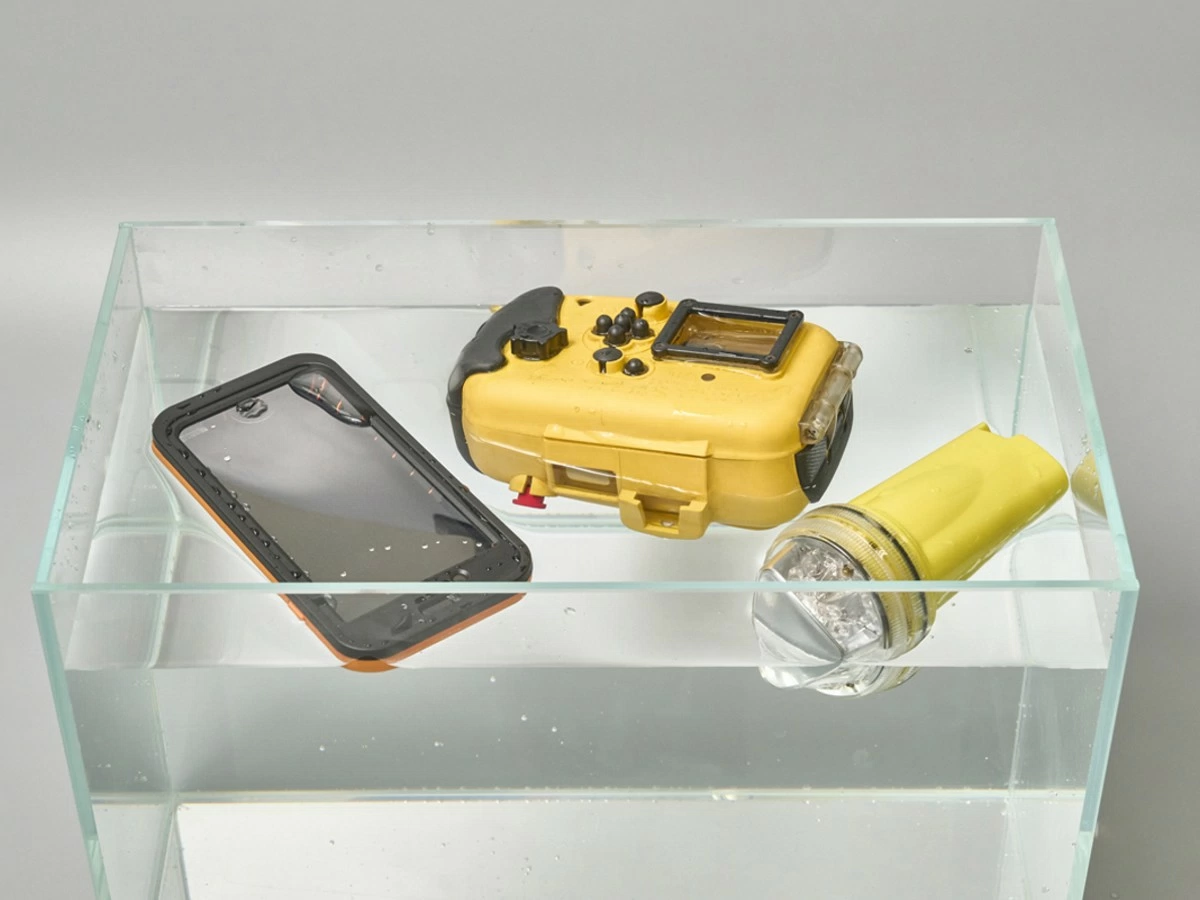

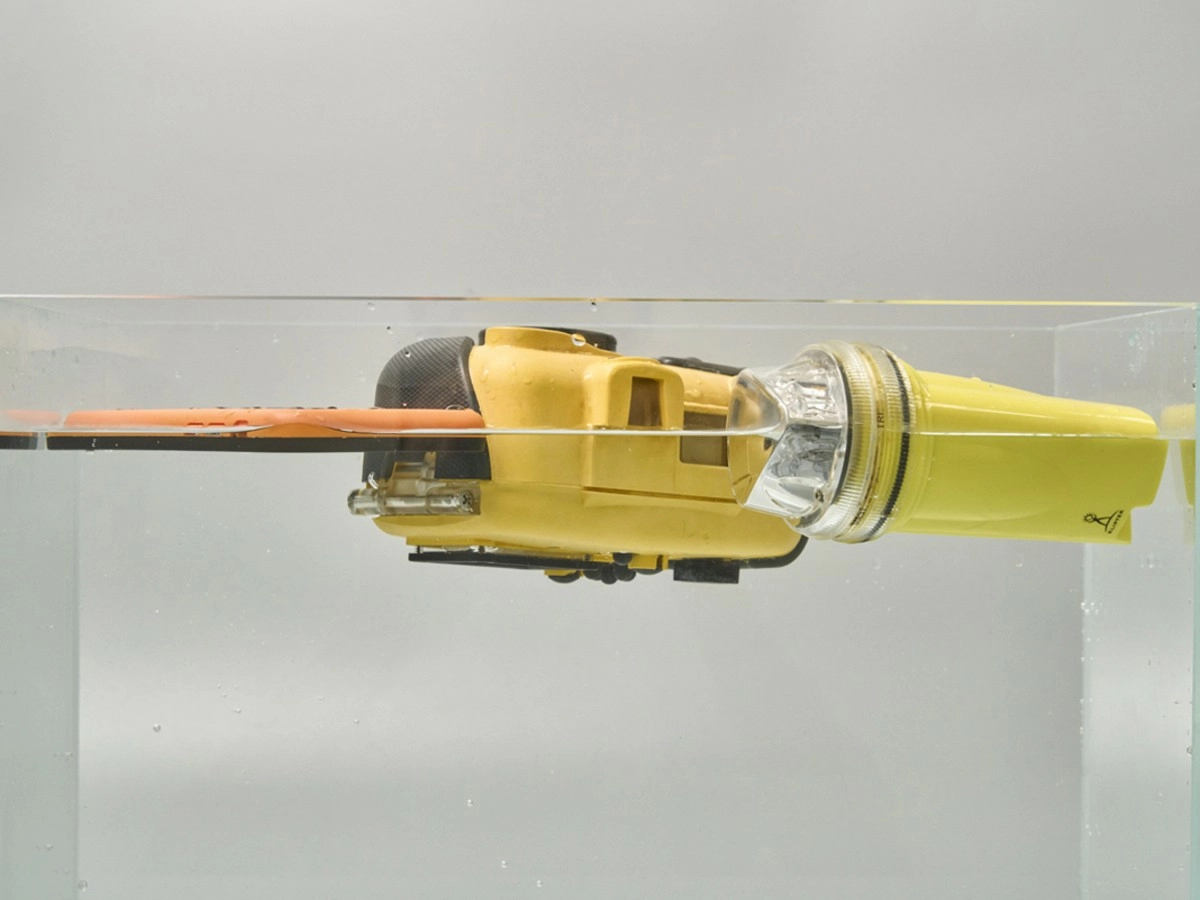

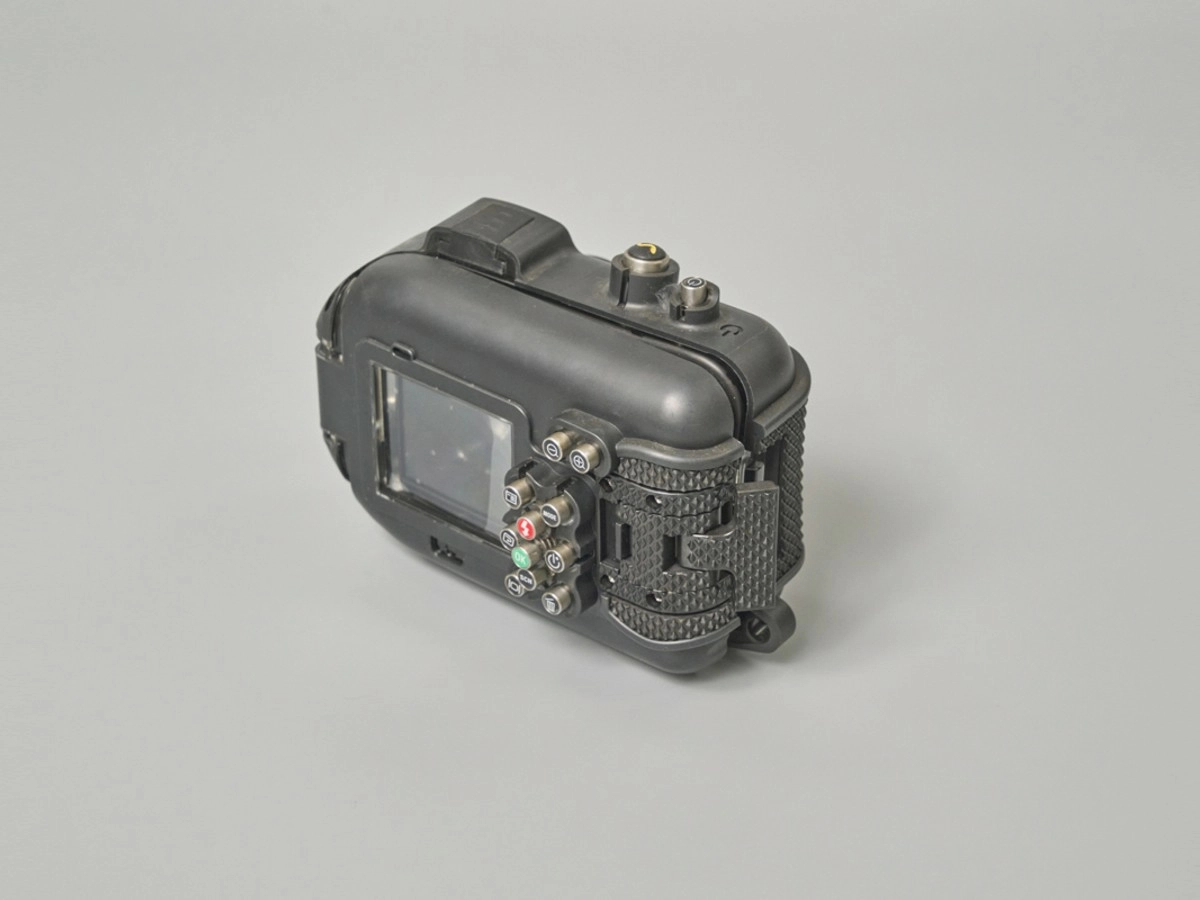

IP168 Waterproofing Sample

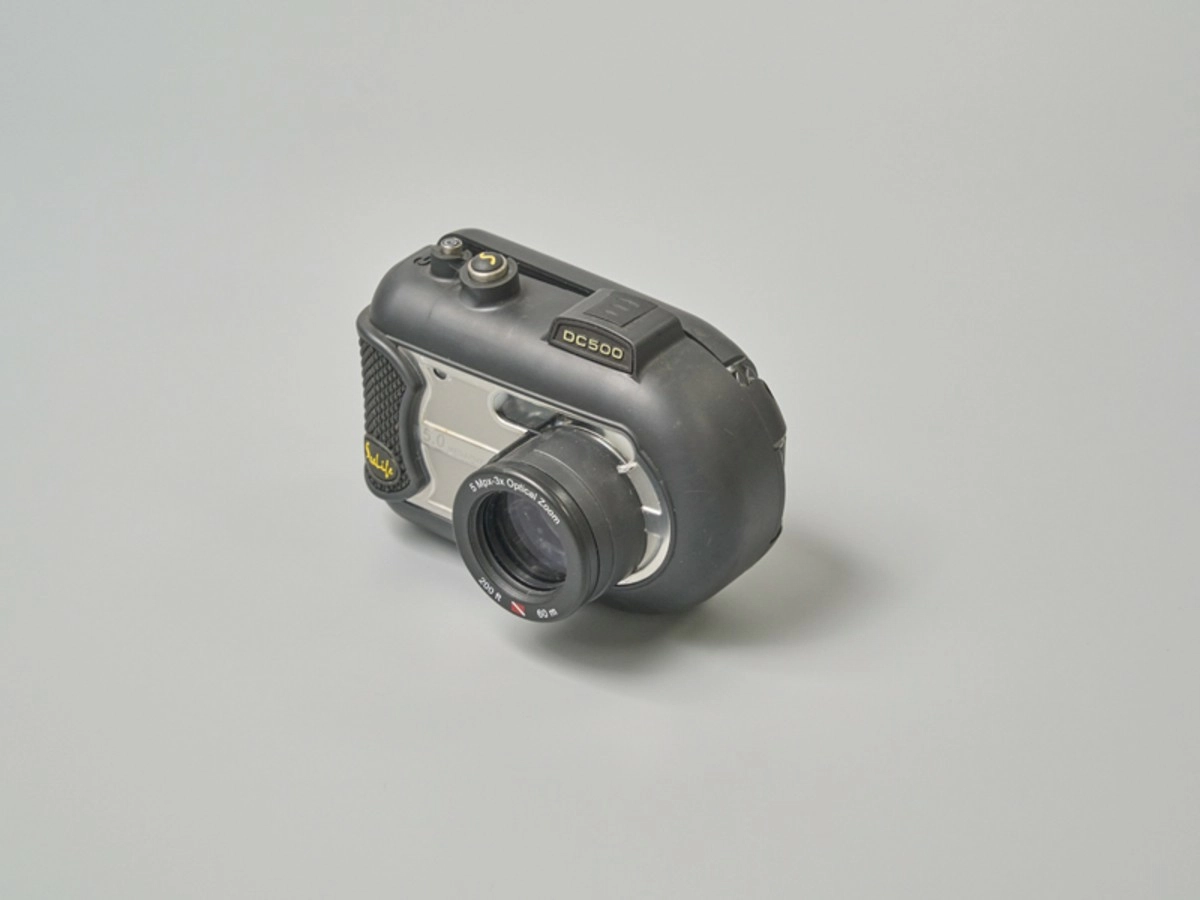

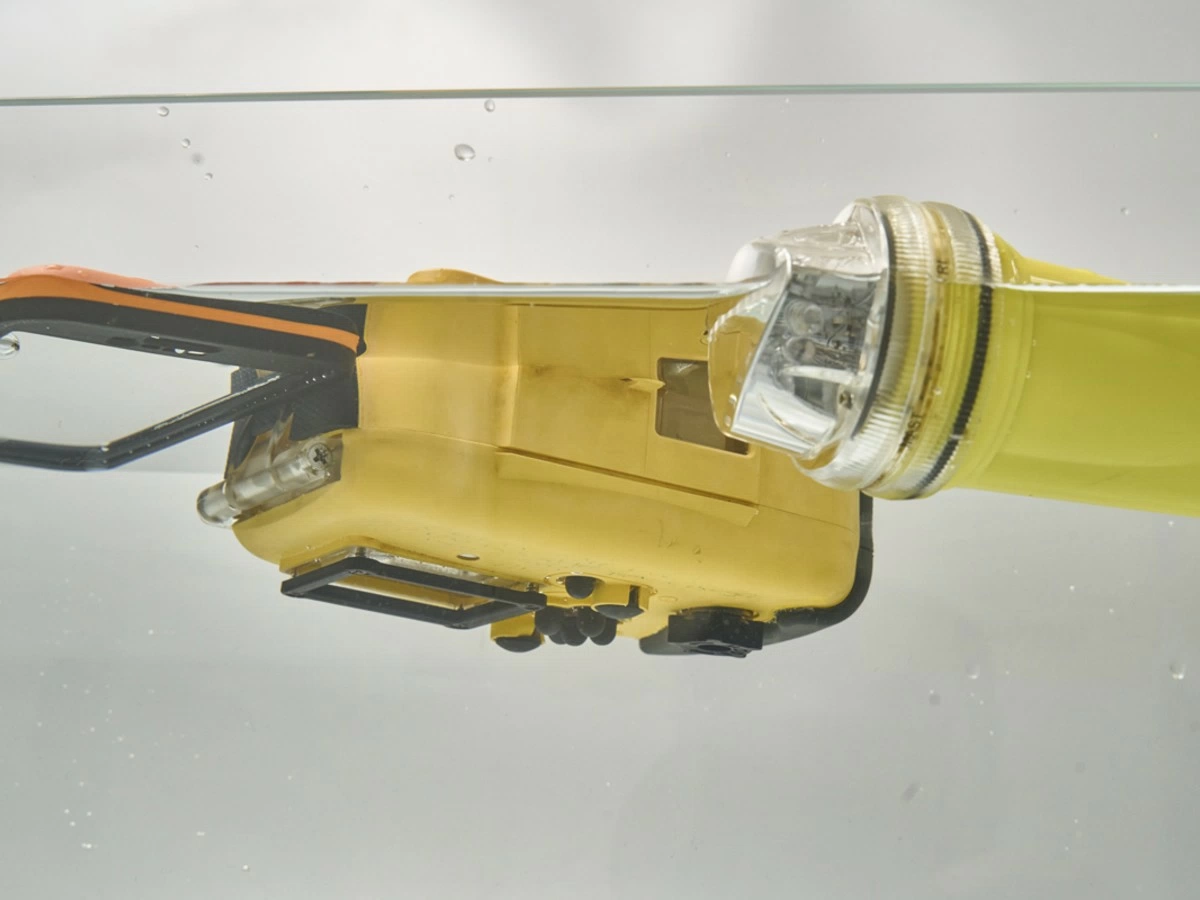

IP168 Waterproof Overmolding

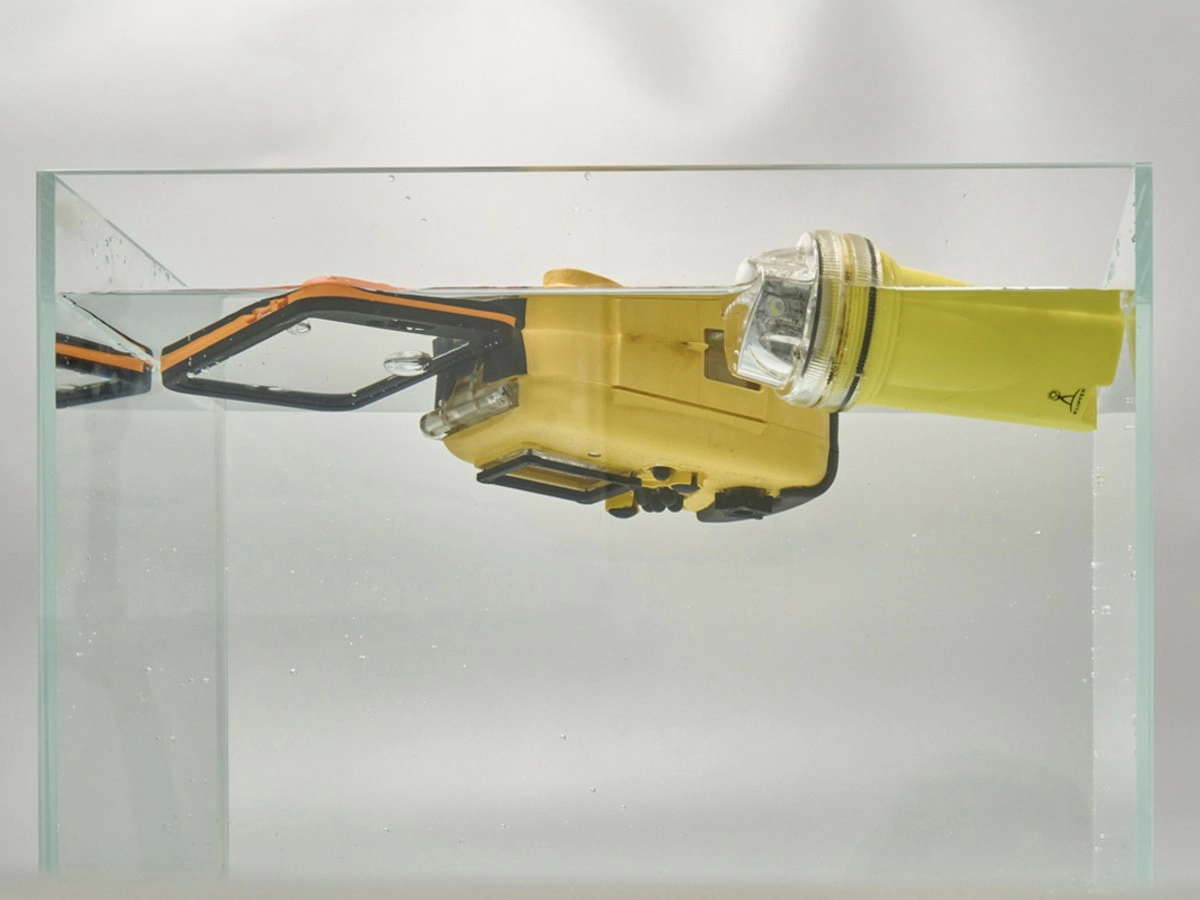

IP168 Waterproof



IP168 Waterproofing Samples
IP168 Waterproof Over Molding
IP168 Waterproofing Molds

MATERIAL REFERENCE CHARTS

OVER MOLDING




yomura technologies over molding material reference charts
yomura technologies over molding material reference charts



yomura technologies over molding material reference charts
yomura technologies over molding material reference charts



yomura technologies over molding material reference charts
yomura technologies over molding material reference charts
